Product details

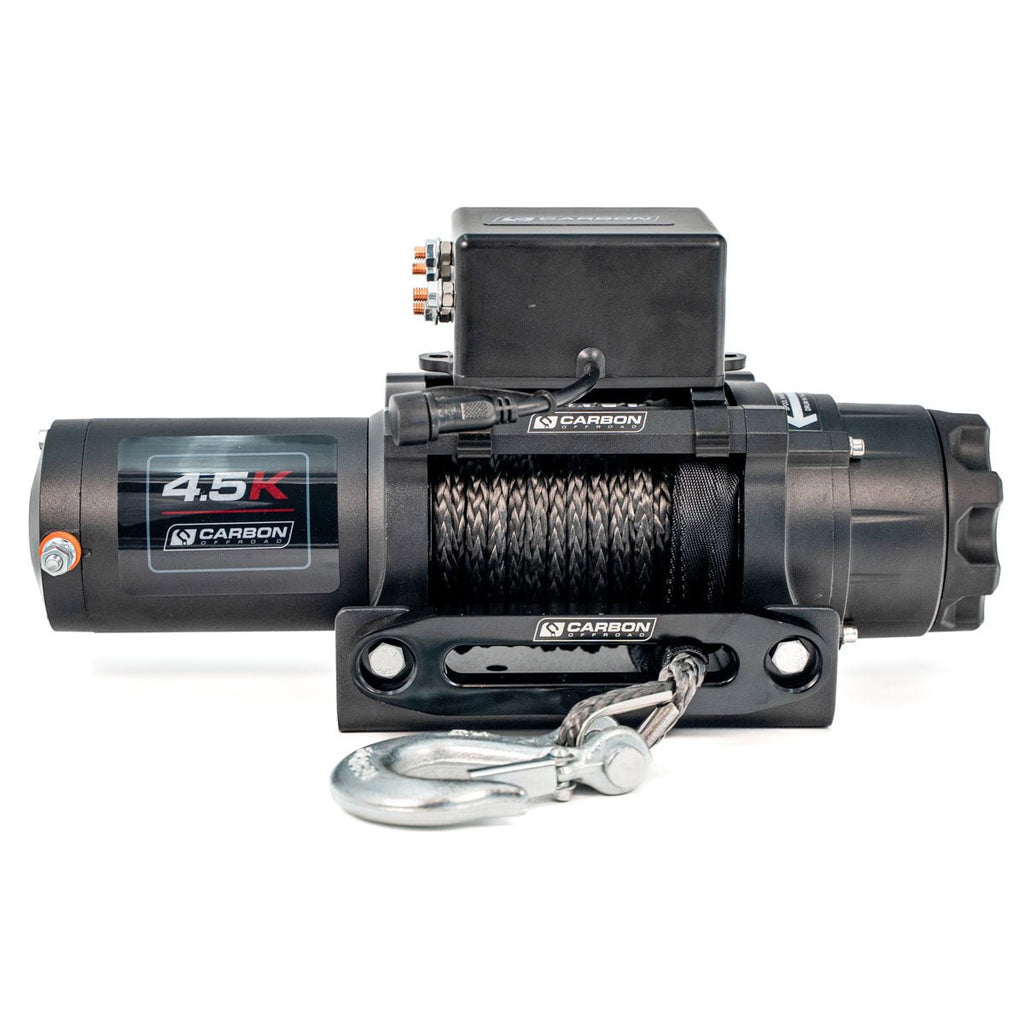

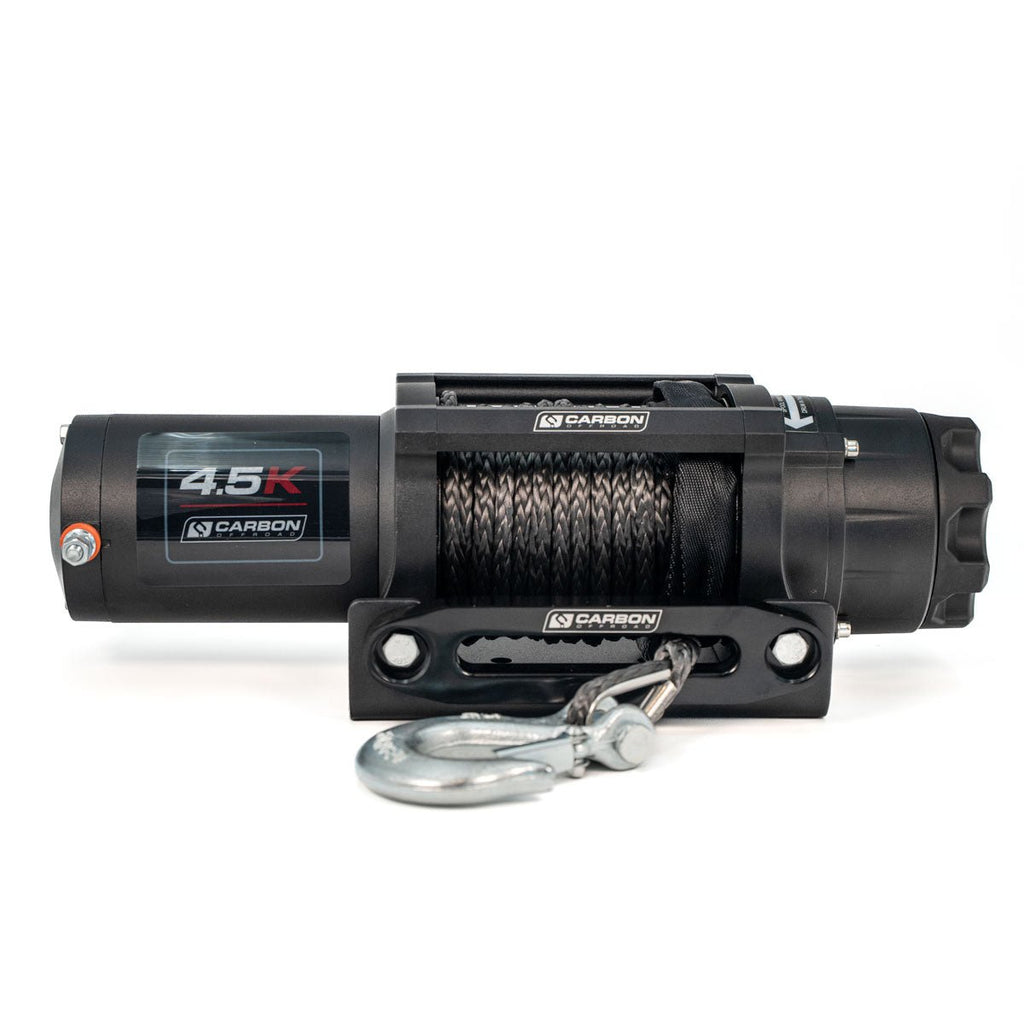

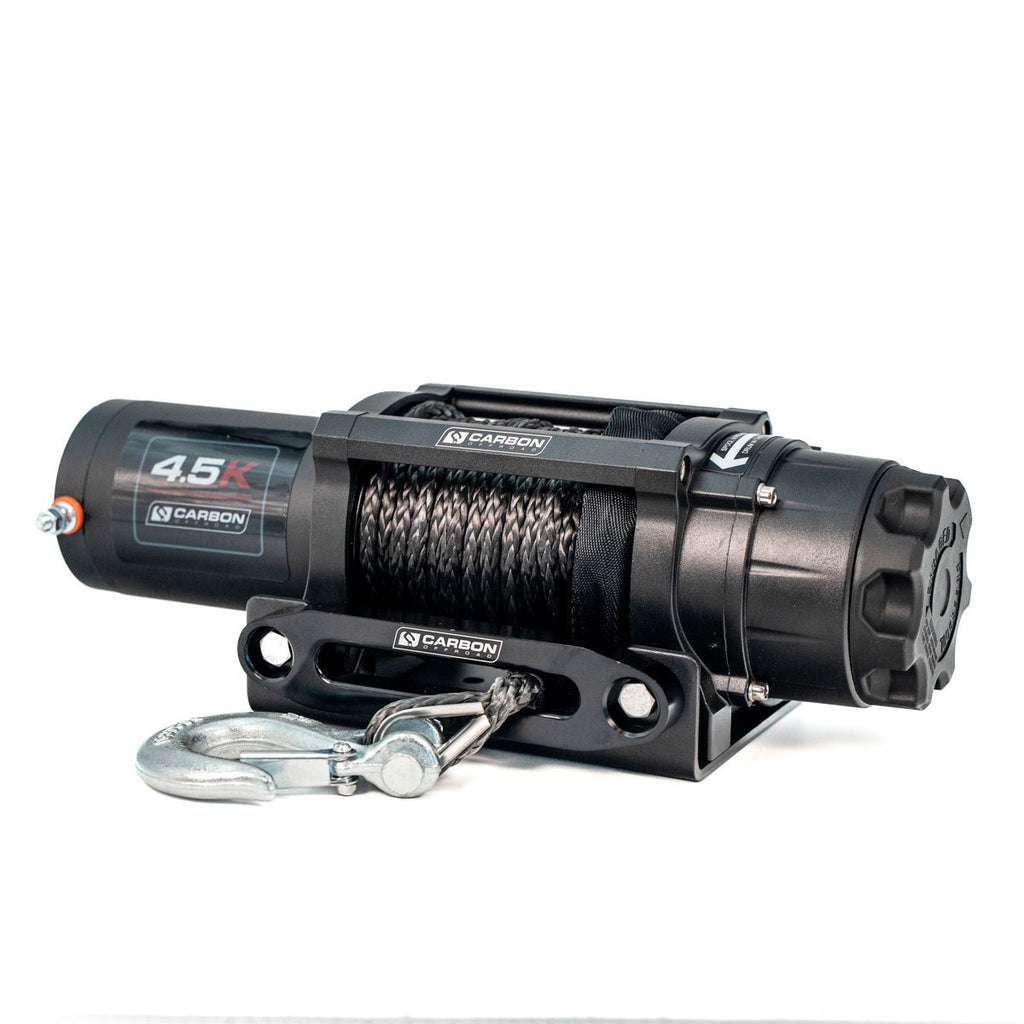

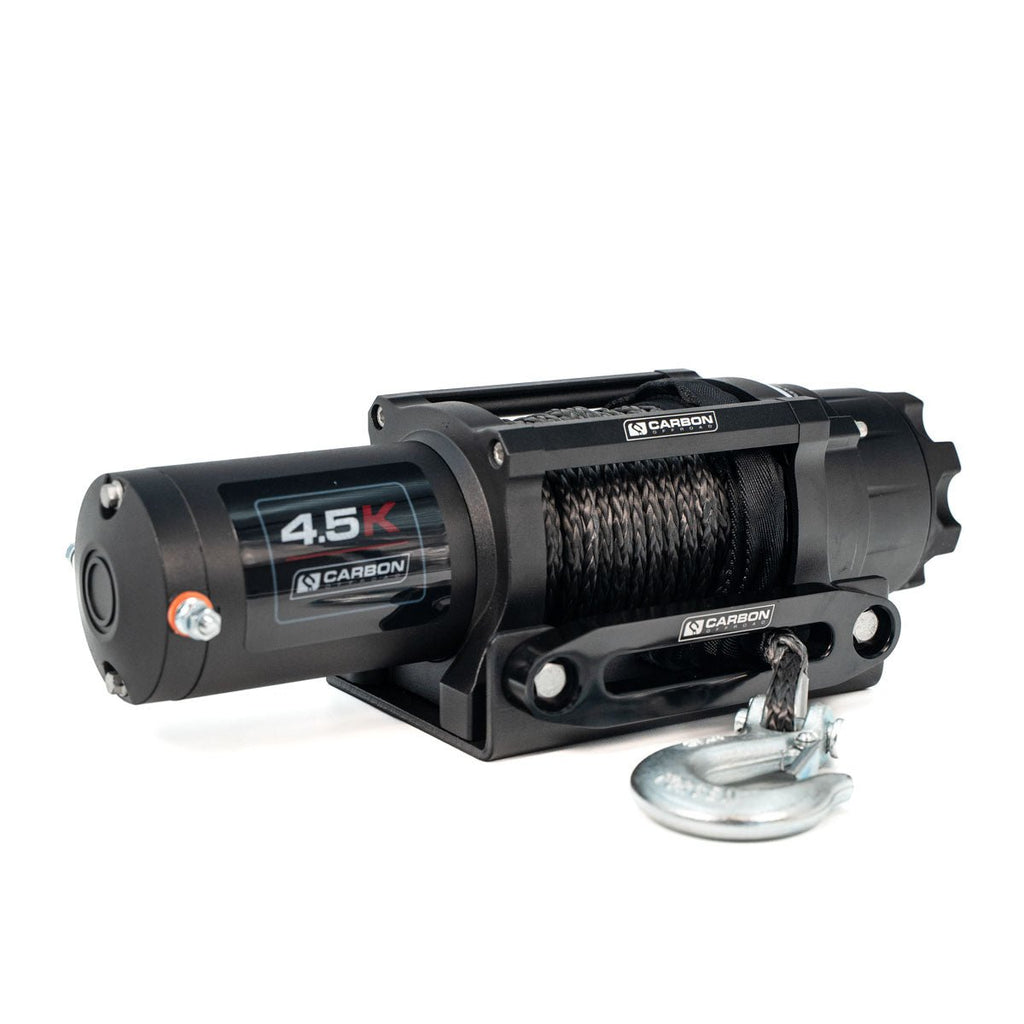

Carbon 4.5k 4500lb ATV/Trailer Winch by Carbon Offroad USA.
Manufacturer-listed features and included items
- Reliable Pulling Power: Features a 4,500 lb single-line pull driven by a highly efficient, sealed 12V DC 1.9 HP permanent magnet motor.
- Maximum Convenience: Includes both a free wireless remote control for effortless operation and a handlebar mini-rocker switch for direct, hands-on control from your ATV.
- Heavy-Duty Geartrain: Equipped with a full metal 3-stage planetary gear train (176:1 ratio) for greater pulling force, reinforced by tie bars for ultimate stability.
- Power In & Out: Offers reliable power in and out operation supported by dynamic and mechanical load-holding braking.
- Premium Synthetic Setup: Spooled with high-strength, lightweight synthetic rope and paired with a sleek CNC billet alloy black anodised Hawse fairlead to reduce friction.
Supplier-listed specifications
| Feature | Specification Metric (Imperial) |
|---|---|
| Model | CW-45 |
| Rated Line Pull | 4,500 lbs (2,040 kg) single-line |
| Motor | 12V DC, 1.9 HP permanent magnet motor |
| Geartrain | 3-Stage Planetary (176:1 ratio) |
| Brake System | Dynamic & Mechanical |
| Synthetic Rope | 13m x 6.35mm (43' x 1/4") |
| Fairlead | CNC billet alloy black anodised |
| Mounting Bolt Pattern | 76mm x 167mm (3.0" x 6.59") |
| Winch Dimensions (L x W x H) | 379mm x 120mm x 115mm (14.9" x 4.7" x 4.5") |
| Shipping Weight | 12.2 kg (26.9 lbs) |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 31 | 1 / 4500 (2040) |
| 1000 (454) | 14.2 (4.3) | 65 | 2 / 3750 (1700) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 3510 (1595) |
| 3000 (1360) | 7.7 (2.4) | 125 | 4 / 3300 (1500) |
| 4500 (2040) | 4.9 (1.5) | 175 | - |
Fit and use
Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, specifically designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport.
This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting. Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring improved clutch handle operation for smoother control, enhanced sealing for wet and rugged conditions, and upgraded components for long-lasting performance.
It comes standard with an integrated mounting plate for quick and simple installation, easily securing to an existing pedestal or designated winch mount on your trailer, ATV, or buggy. It is ideal for loading heavy equipment into vans, retrieving stuck ATVs, pulling boats onto trailers, and even opening cattle gates on livestock trucks.

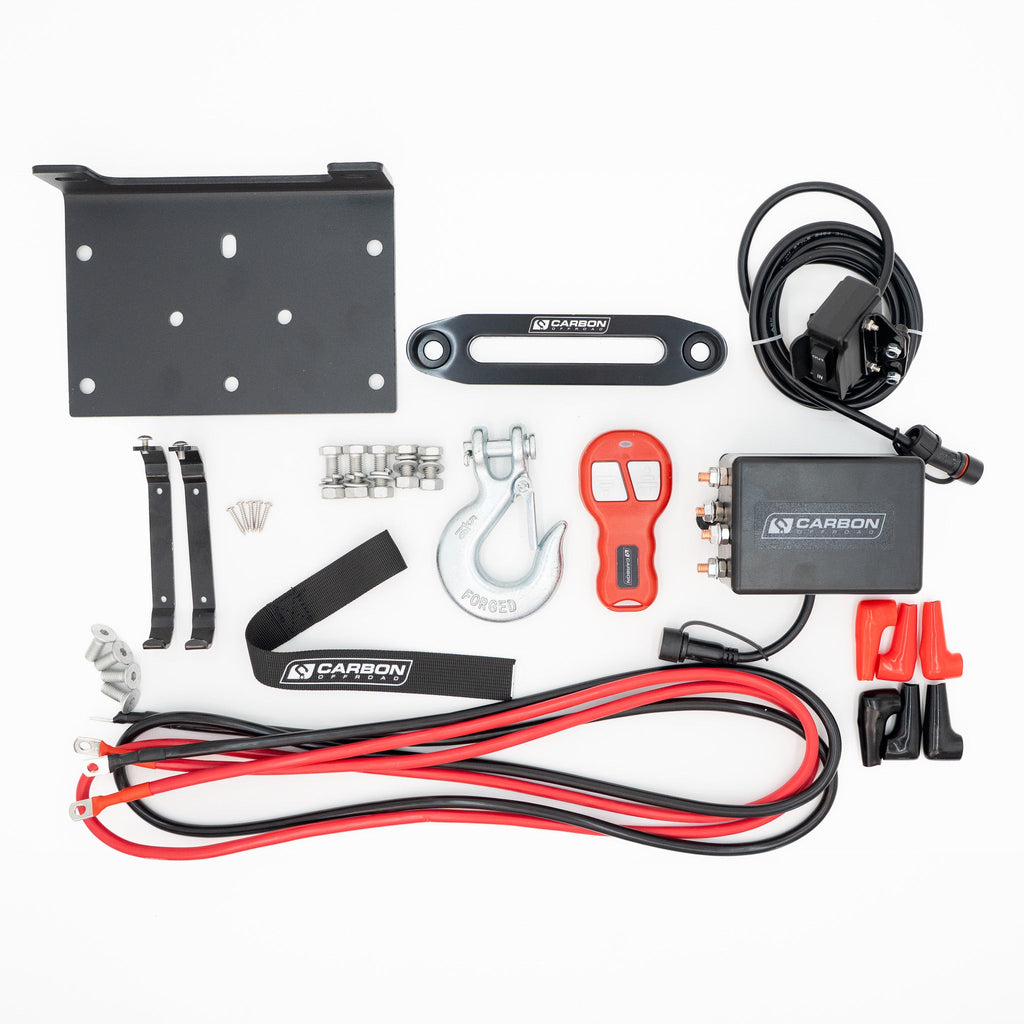

1 x Carbon CW-45 4500lb Winch
1 x Synthetic Rope (43 ft x 1/4" / 13m x 6.35mm)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Integrated Mounting Plate & Hardware Set
Follow the manufacturer's instructions, load ratings and compatibility requirements when selecting and using recovery equipment.
