Product details

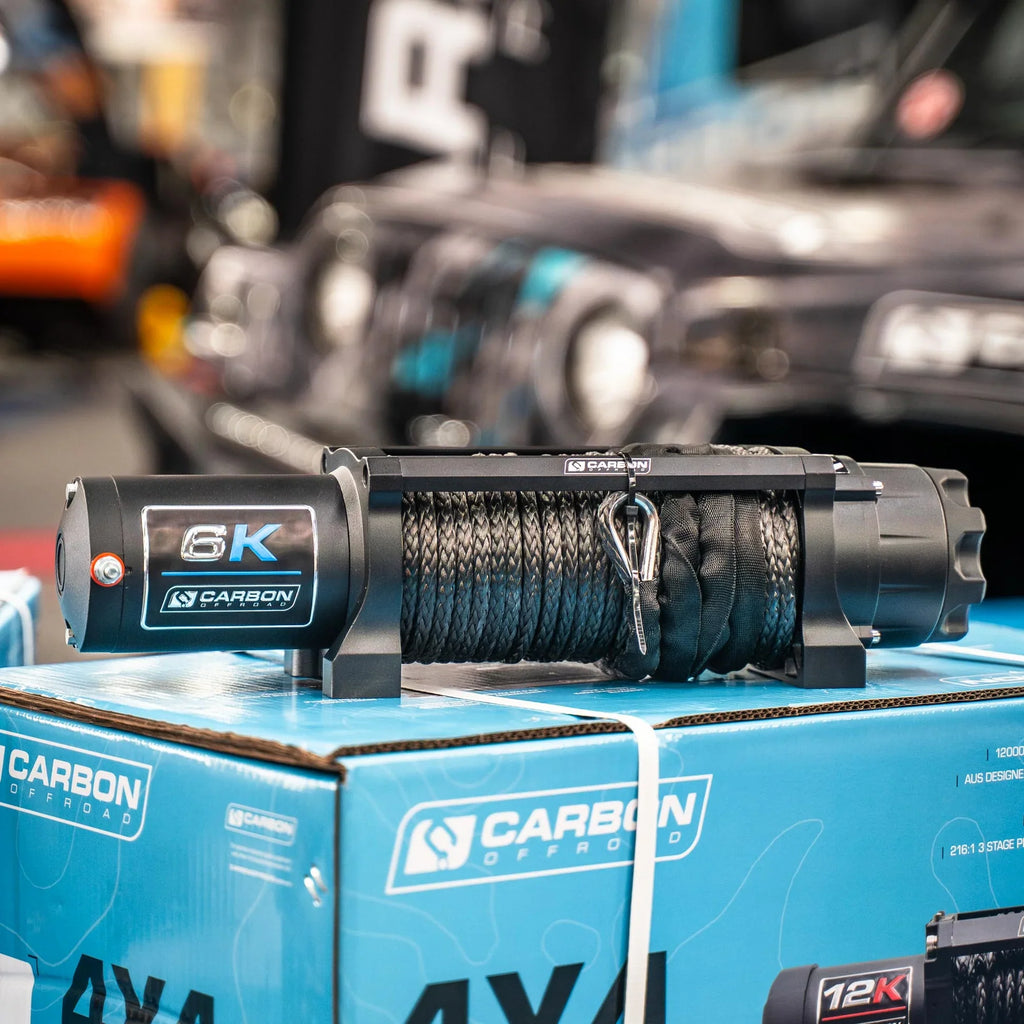

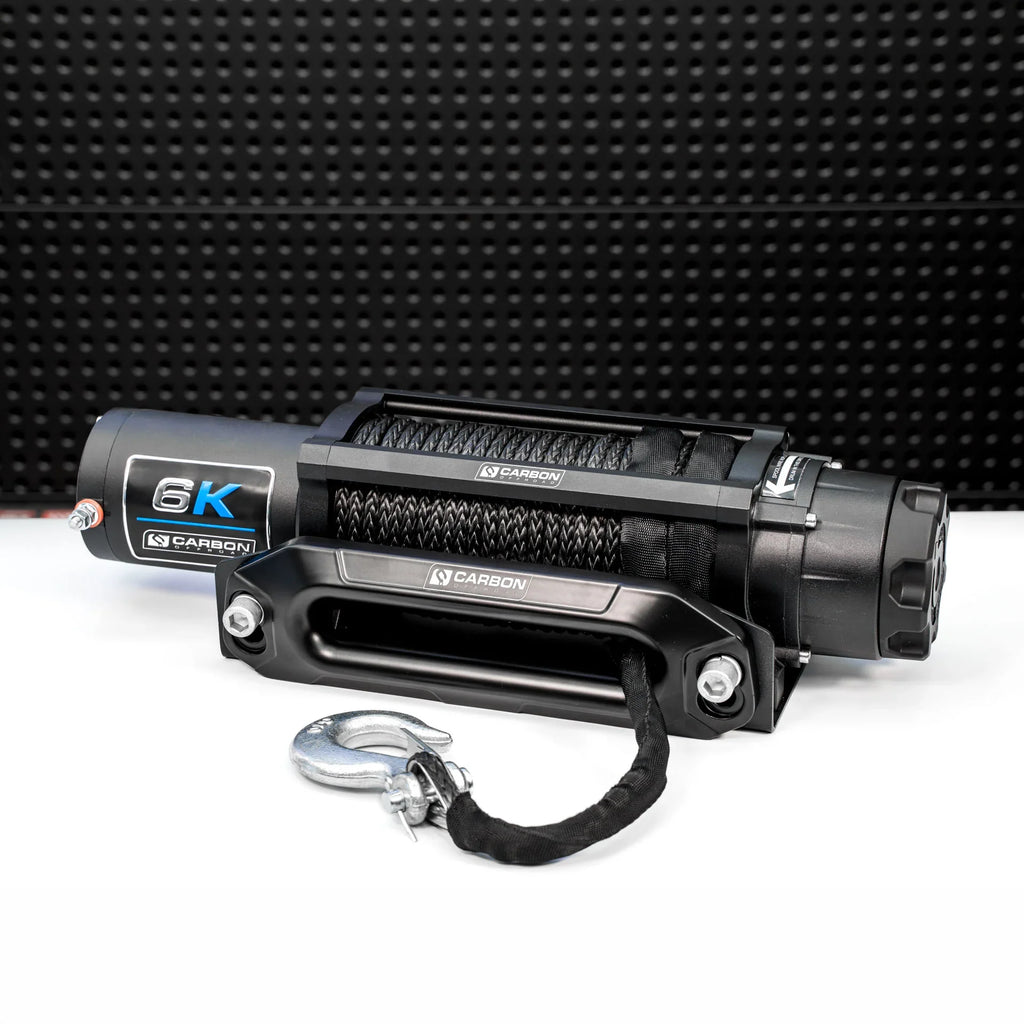

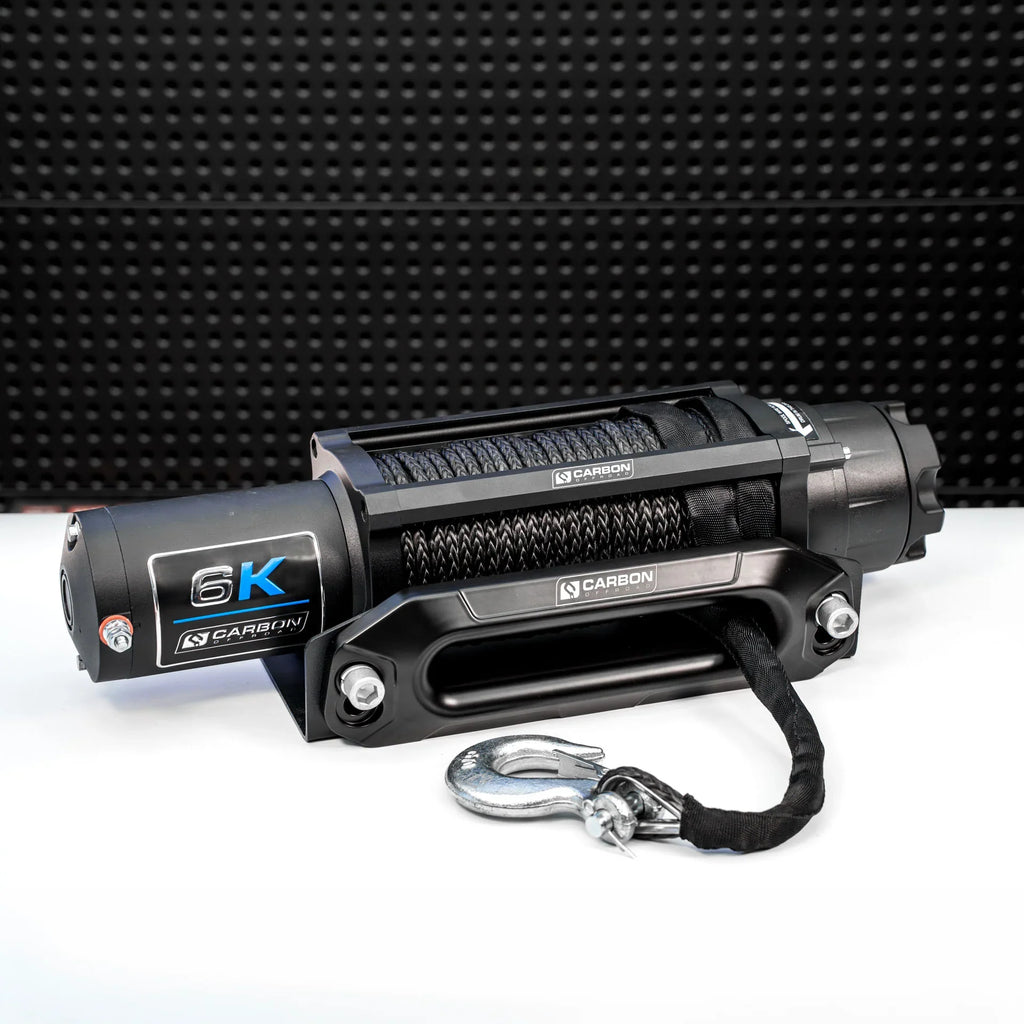

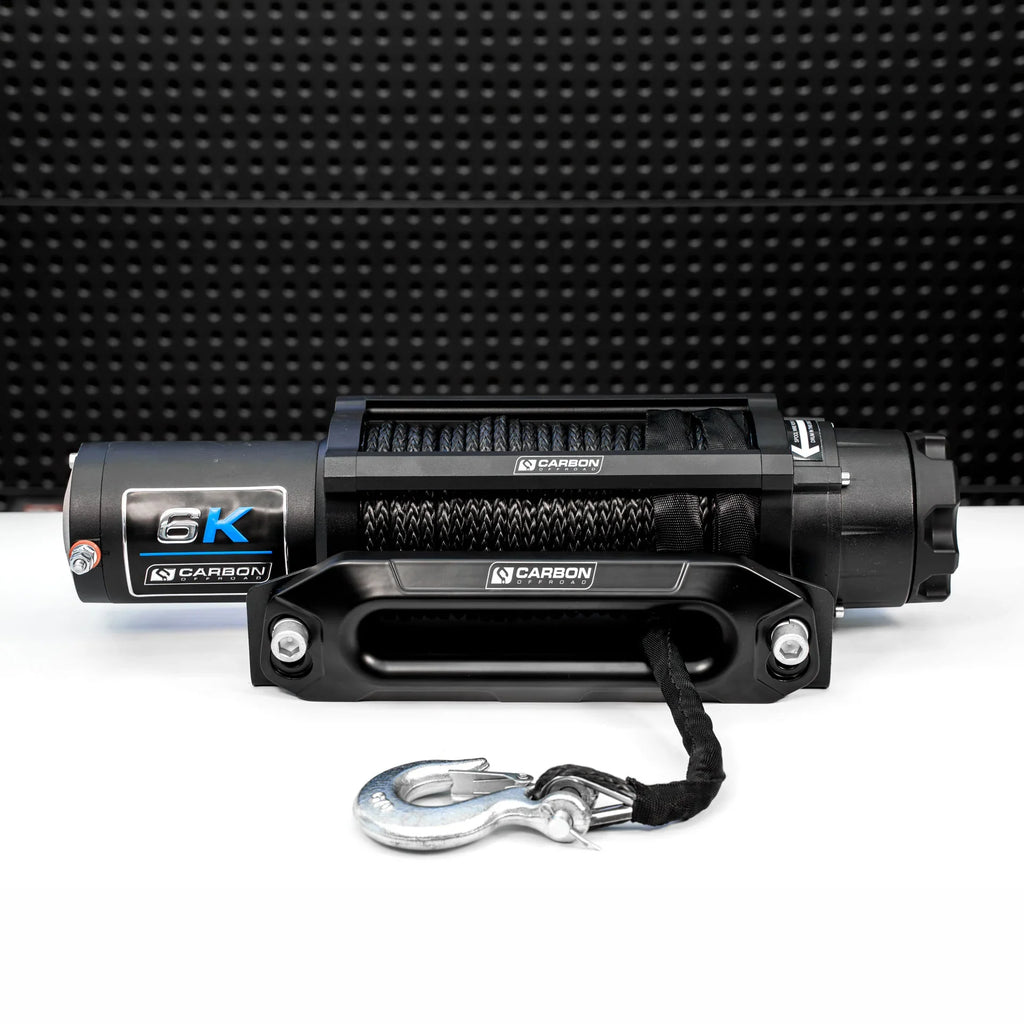

Carbon Offroad Long Drum 6000lb ATV - Small 4X4 Winch by Carbon Offroad USA.
Manufacturer-listed features and included items
- Extreme Durability: Sealed motor and geartrain (IP68 rated) allows for operation in extreme, wet, and dusty conditions.
- Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for increased pulling power.
- Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling.
- Secure Control: Mechanical and dynamic automatic braking offers increased control and reliably prevents rollback.

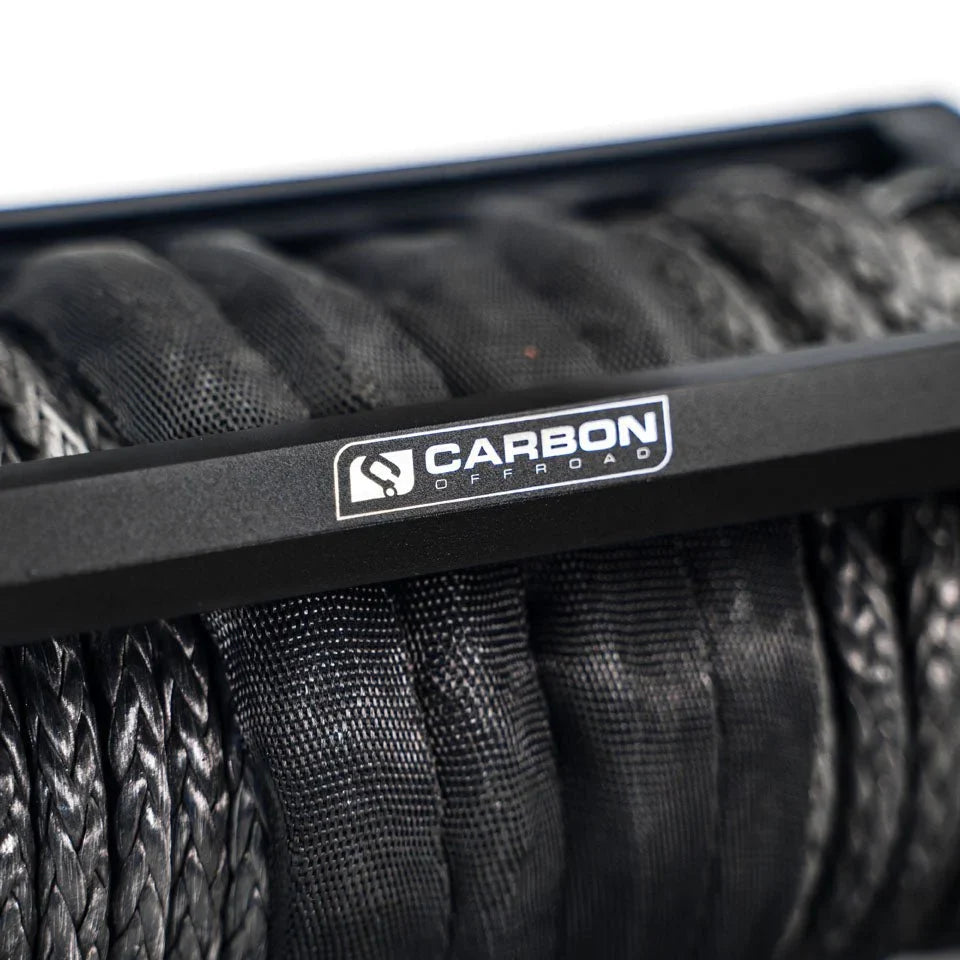

- Extended Rope Reach: The long drum design accommodates an impressive 26m (85.3 ft) of synthetic rope, giving you more options in tricky recovery scenarios.
Supplier-listed specifications
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD6L |
| Rated Line Pull | 6000 lbs (2725 kg) single-line |
| Motor | 12V DC 2.5 HP permanent magnet |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 147:1 |
| Clutch | Roller disc full load automatic |
| Brake | Automatic brake in the motor bracket |
| IP Rating | IP68 for winch and solenoid (excludes remotes) |
| Synthetic Rope | 26m x 6.5mm (85.3 ft x 1/4") |
| Drum Dimensions | 51mm x 208mm (2.0" x 8.2") |
| Mounting Bolt Pattern | 254mm x 76mm (10.0" x 3.0") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 473 x 125 x 120mm (18.6" x 4.9" x 4.7") |
| Packing Dimensions (L x W x H) | 530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch Weight (Bare) | 8.3kg (18.3 lbs) with synthetic rope attached |
| Total Kit Weight | 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty | Lifetime Mechanical / 5 Year Electrical |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8 (4.2) | 15 | 1 / 6000 (2725) |
| 2000 (907) | 9.5 (2.9) | 125 | 2 / 5350 (2430) |
| 4000 (1814) | 7.2 (2.2) | 190 | 3 / 4780 (2170) |
| 6000 (2722) | 4.6 (1.4) | 240 | 4 / 4270 (1940) |
Fit and use
With 6,000 lbs of pulling capacity and a generous 26m (85.3 ft) synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope?
1 x Carbon Offroad Long Drum 6000lb Winch (CW-XD6L)
1 x Synthetic Rope (26m x 6.5mm diameter)
1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Control Box complete with cables & mounting bolts
Follow the manufacturer's instructions, load ratings and compatibility requirements when selecting and using recovery equipment.
