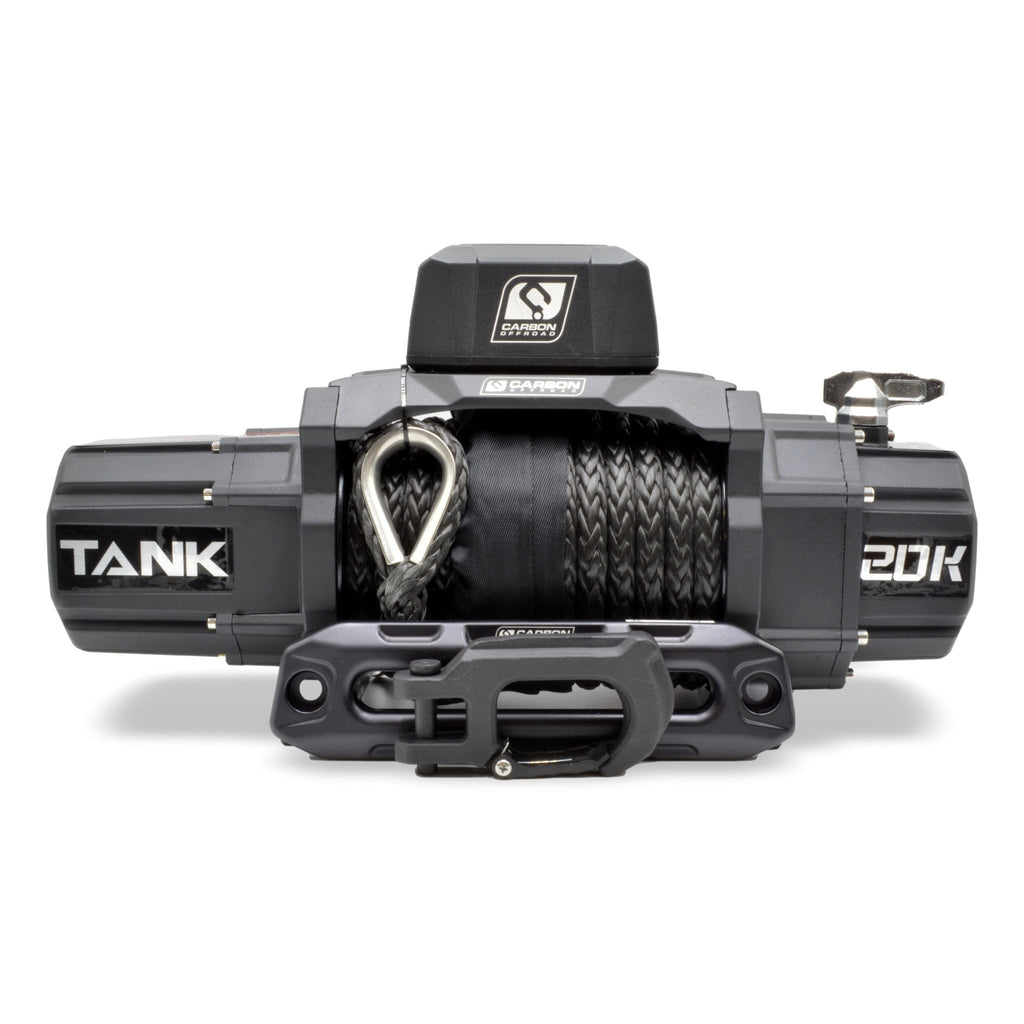

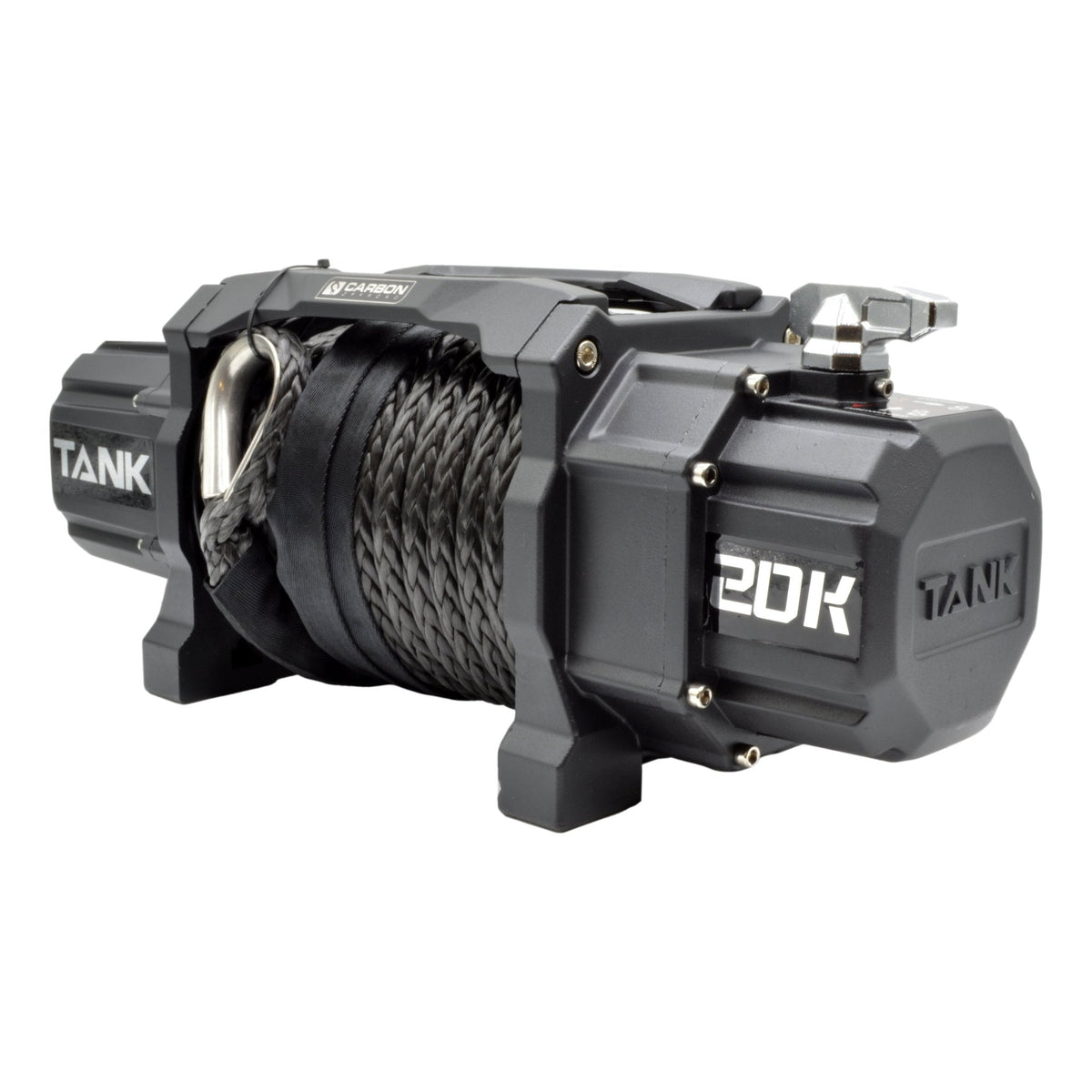

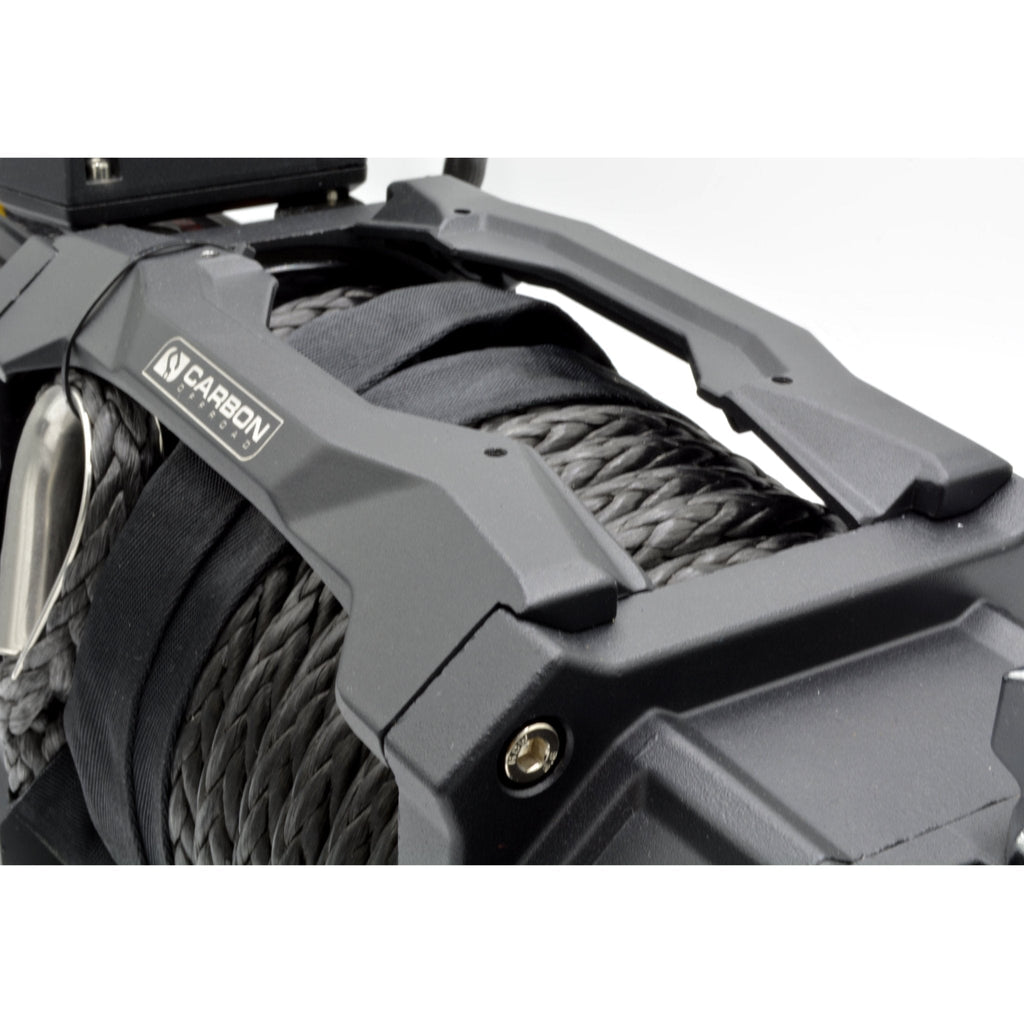

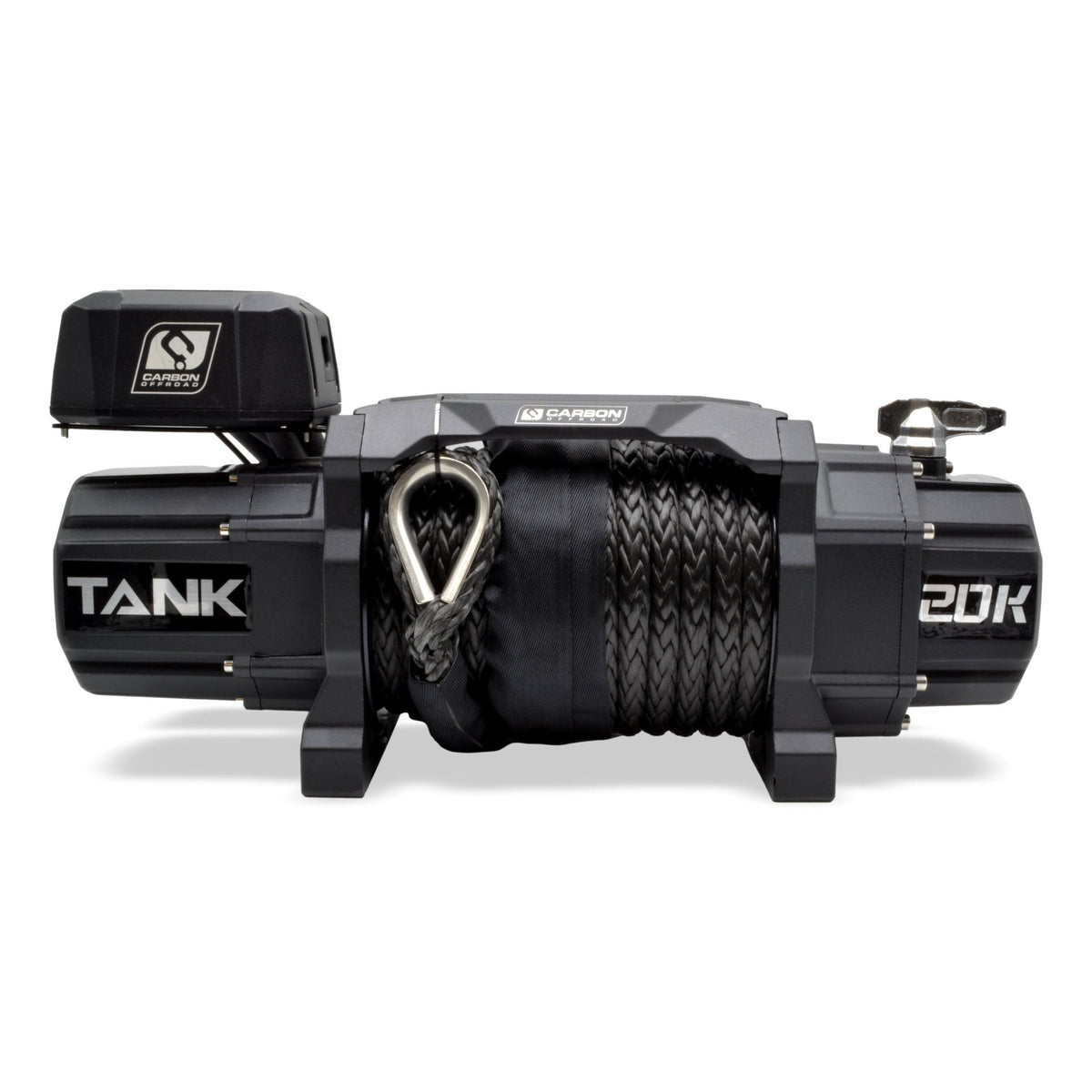

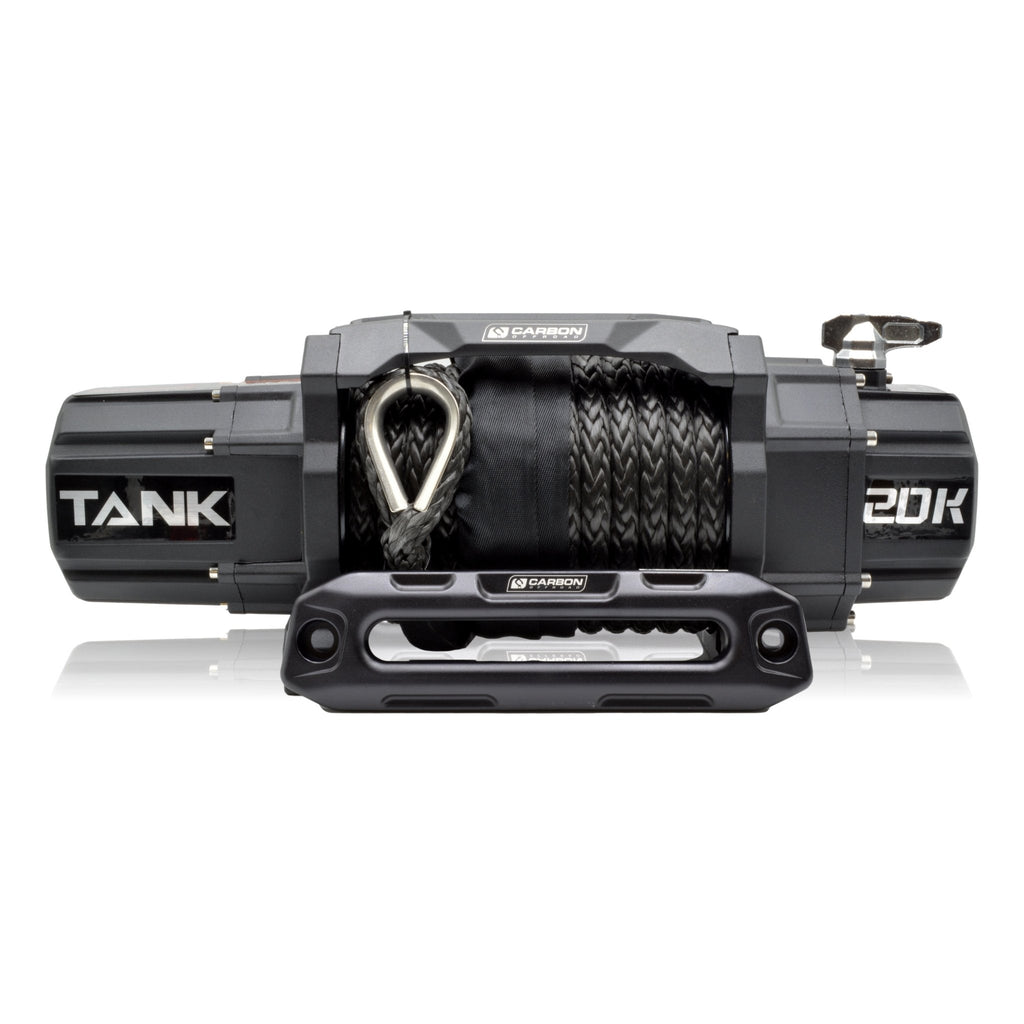

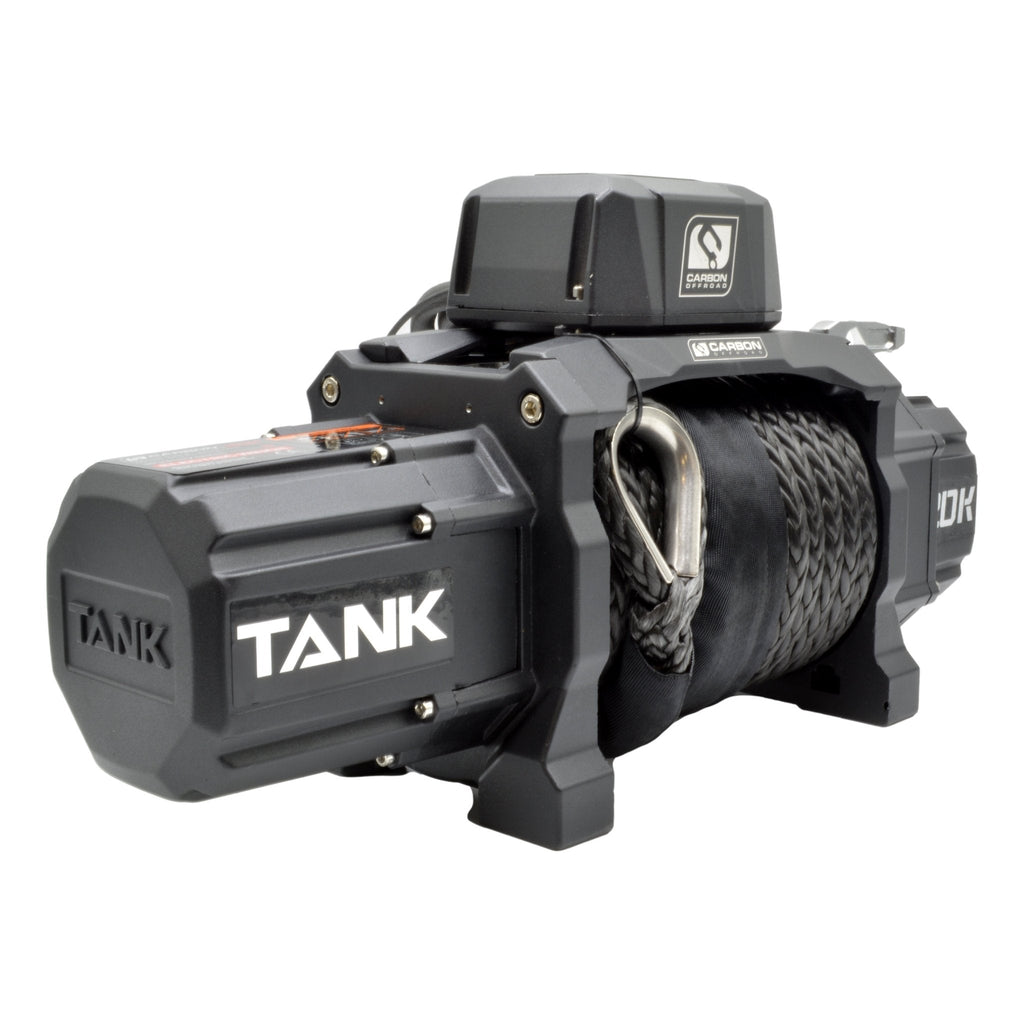

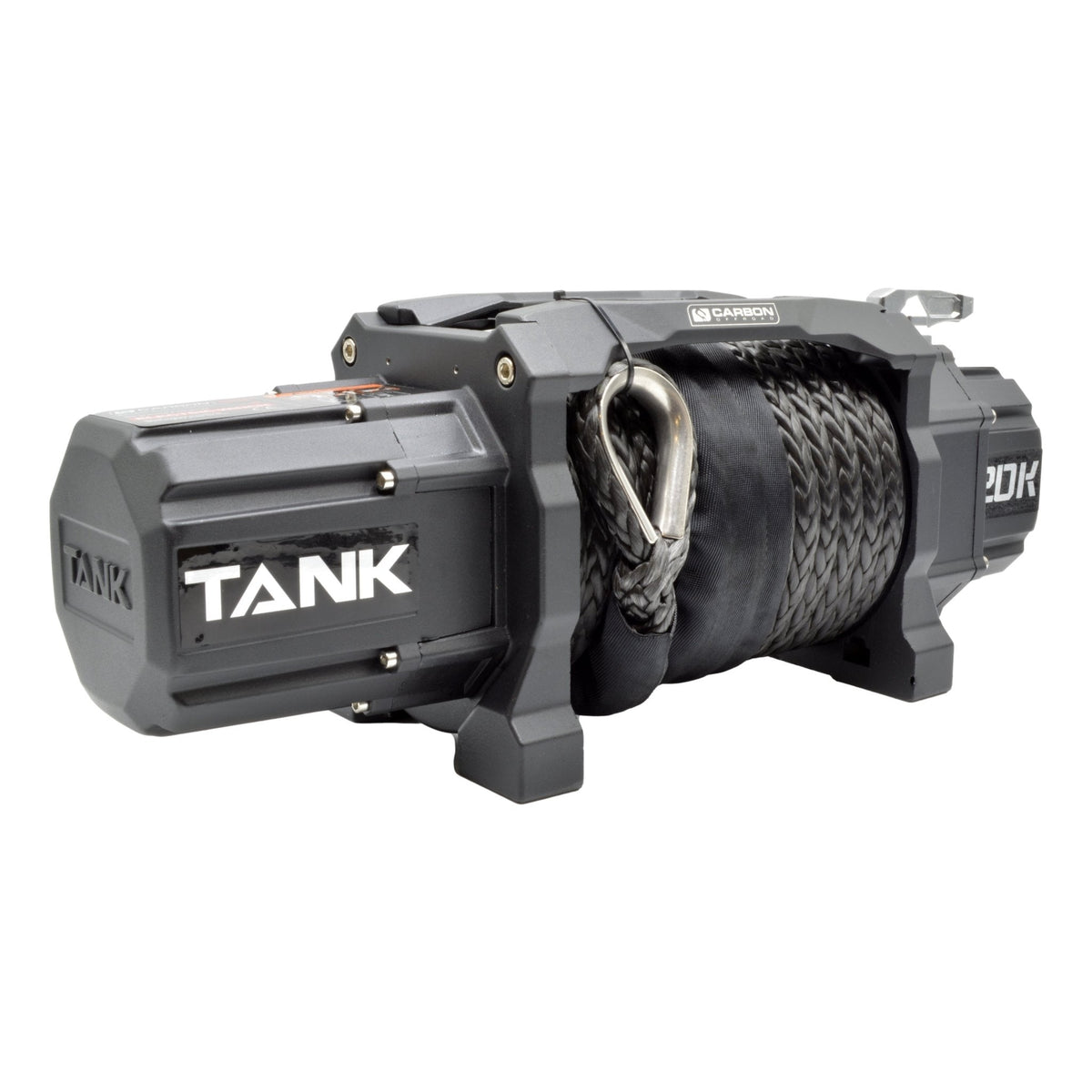

Carbon TANK - 20000lb Winch 24V [Clearance]

Carbon TANK - 20000lb Winch 24V [Clearance] by Carbon Offroad USA.

Manufacturer-listed features and included items

• 1 x TANK winch with synthetic rope
• 1 x control box kit complete with cables
• 1 x battery earth cable
• 1 x 2-in-1 wireless remote control with plug-in cable backup
• 1 x alloy fairlead, standard offset
• 1 x forged alloy hook with mounting pin and split pin
• 1 x mounting bolt kit including separate fairlead mounting bolts
• 1 x control-box over-motor mounting bracket pair
• 1 x bolt kit for control-box mounting
• 1 x rotary battery isolator switch
• 1 x battery isolator connecting cable, 30cm
• 1 x battery isolator mounting bracket
• 1 x hook safety strap
• 1 x instruction manual

• Rated Pulling Power: 20,000lb (9072kg)
• Power: 24V DC
• Motor: 7.8HP Series Wound intermittent duty cycle
• Cabling: 25mm² conduited cable with terminated lugs
• Hand Control: 2-in-1 rechargeable wireless or plug-in wired loom, spare battery included
• IP Rating: IP68, motor unit pressure tested to 20 PSI
• Hook: High-strength forged alloy wide-gate hook
• Control box: Cast-alloy compact design for over-motor or over-drum fitment with 600A solenoid and inbuilt wireless receiver
• Isolator: Heavy-duty marine rotary-style isolator with mounting bracket
• Winch Housing: Cast and precision-machined alloy
• Gear Train: 440:1 ratio, four-stage planetary gearset
• Clutch: Rotating ring-gear clutch
• Synthetic rope: 21m of 14mm diameter UHMWPE fibre
• Mounting bolt pattern: 254mm x 114.3mm (10 x 4.5 in)
• Drum Diameter: 88mm
• Battery: 650 CCA minimum vehicle battery size for winching
• Shipping Carton Weight: 37kg
• As fitted to vehicle: 33.4kg

• 1st layer of drum: 20000lb (9072kg) / between 16-21m rope out
• 2nd layer of drum: 16216lb (7371kg) / between 11-16m rope out
• 3rd layer of drum: 13636lb (6198kg) / between 1-11m rope out

• Line pull 0kg: 16.4ft/min (5m/min), 85A
• Line pull 6000lb / 2721kg: 7.4ft/min (2.25m/min), 185A
• Line pull 10000lb / 4563kg: 5.1ft/min (1.55m/min), 275A
• Line pull 15000lb / 6803kg: 3.3ft/min (1.0m/min), 425A
• Line pull 20000lb / 9072kg: 2.62ft/min (0.8m/min), 430A

Fit and use

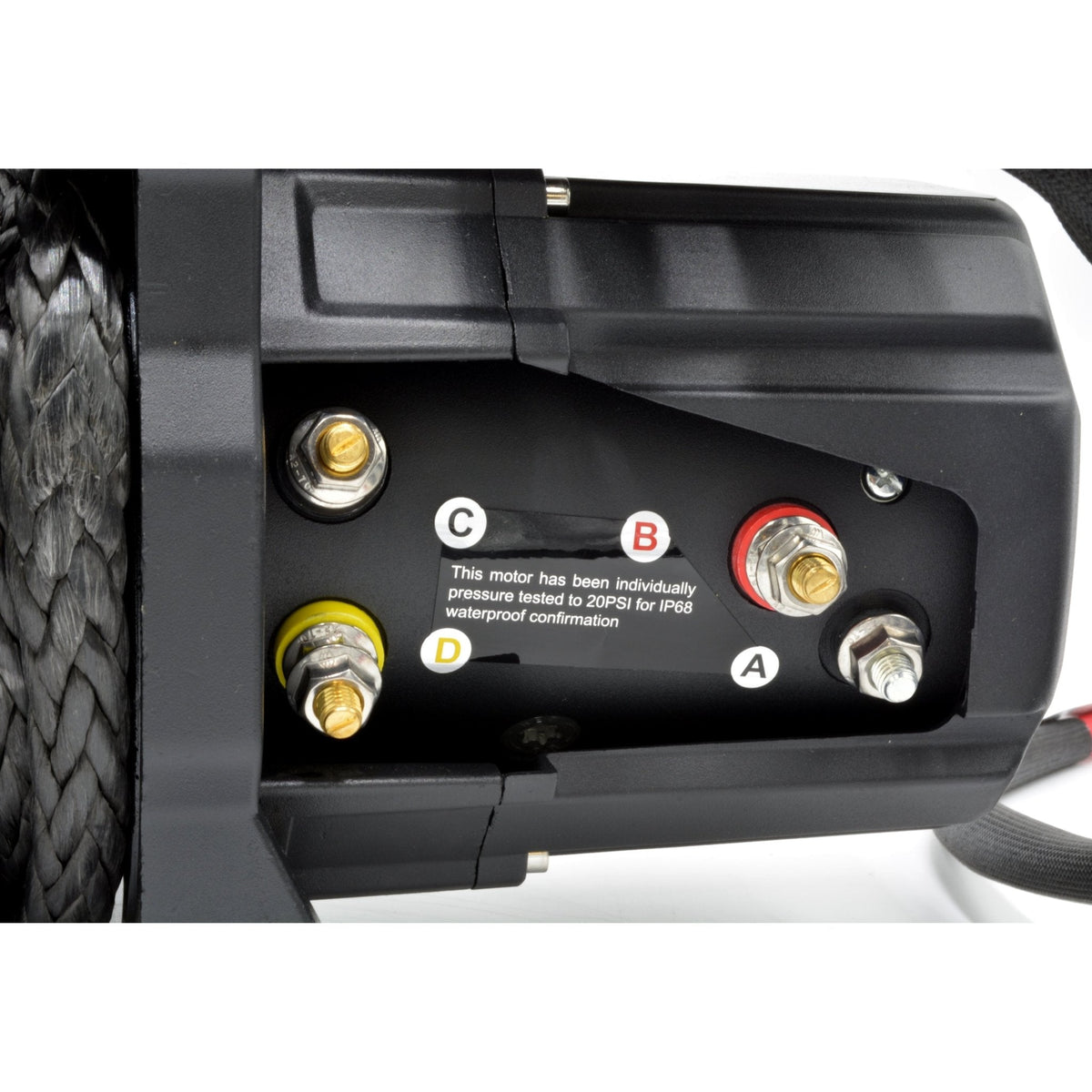

For water resistance, the motor and drum-frame assembly undergoes pressure leak testing to 20 PSI, simulating the pressure at roughly 14 metres underwater, and must pass before moving down the assembly line. The gearbox housing uses a two-stage mechanical and rubber O-ring sealing system. The product is specified to IP68, with the motor unit pressure tested to 20 PSI.

The TANK is offered in 12V and 24V configurations. This listing is for the 24V version.

Rated Line Pull:

Warranty: Limited Lifetime Geartrain / 5 Year Electrical. Designed for Australian and international conditions. 5 Year Water Ingress Protection Warranty.

Follow the manufacturer's instructions, load ratings and compatibility requirements when selecting and using recovery equipment.
